Port 1880 turns messages into wired flows
Node-RED opens a browser editor on port 1880 and runs the deployed flow in a Node.js process. Nodes receive messages, change or route them, and pass them along wires. The palette includes building blocks for network protocols, parsers, storage, and common control tasks. Shared configuration nodes let several flow nodes reuse a broker or service connection without copying its settings into every box.
The visual surface does not eliminate programming. Function nodes run JavaScript, custom nodes can package new behavior, and the palette manager installs npm modules from the wider Node-RED catalog. That mix is the appeal: draw the ordinary plumbing, write code for the odd part, then watch node status and debug messages in the same editor. A flow remains readable only if the team names nodes, limits wire crossings, and splits repeated logic into subflows.
Three context scopes start in volatile memory
Node-RED provides 3 context scopes: node, flow, and global. The default store holds all of them in memory, so a restart clears their values. The built-in localfilesystem store can persist them under the user directory and writes cached changes to disk every 30 seconds. Workloads that count events, remember device state, or coordinate retries need an explicit decision about which values may vanish and which require durable storage.
Flows are stored as JSON, with credentials kept in a companion file. The optional Projects feature puts application files in a Git repository, tracks dependencies in package.json, and can encrypt credentials with a key kept outside the project. It improves collaboration, but the editor runs 1 project at a time and exposes a simplified Git workflow. Teams still need backup, key distribution, environment-specific settings, and a review method for visual changes.

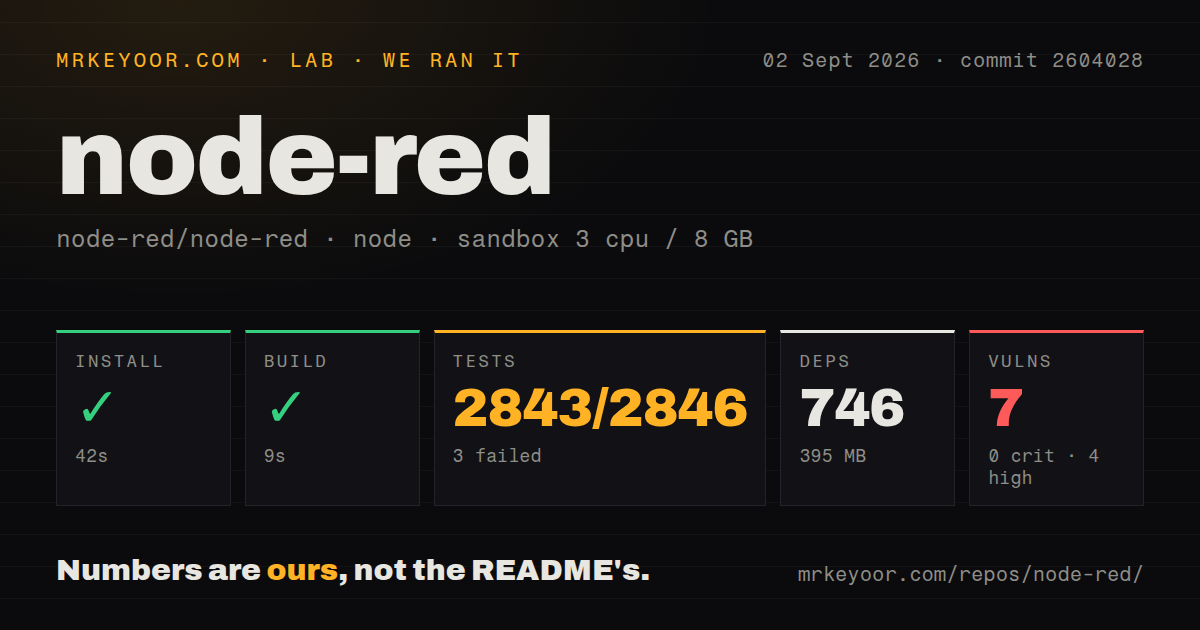

What happened when we ran it
Our sandbox installed commit 2604028 in 42 seconds. Npm added 746 packages and the installed tree occupied 395 MB. The build completed successfully in 9 seconds. The checkout contained 297 files, about 62,069 lines of source, and used 3.3 MB before dependencies.
The test command failed with exit code 1 after 186 seconds. Mocha reported 2,843 passing and 3 failing out of 2,846. The log tail showed the total and several successful CSV and file-handling cases, but it did not identify the 3 failing test names or their cause. The defensible finding is narrow: almost all executed cases passed, and the full suite did not pass in our stated environment.
Npm audit reported 7 known vulnerabilities: 4 high, 2 moderate, and 1 low, with none rated critical. The repository had 2 CI workflow files, a tests directory, and no Dockerfile. Our test method used a fresh unprivileged Debian container with 3 CPUs, 8 GB of RAM, Node.js 22, and no secrets.
The default 0.0.0.0 listener has no editor login
The official security guide says the editor is unsecured by default, while runtime configuration sets uiHost to 0.0.0.0. Anyone who can reach port 1880 can open the editor and deploy changes until the operator enables adminAuth or puts equivalent controls in front. That default is convenient on a trusted laptop and dangerous on a shared LAN, cloud VM, or edge gateway with broad network exposure.
Editor authentication, flow-created HTTP endpoints, and static content have separate controls. Node-RED supports HTTPS, credential-based admin users, OAuth or OpenID strategies, resource permissions, HTTP-node basic auth, and custom middleware. Those settings are capable, but none is inferred from the flow. A production checklist should cover the editor route, admin API, every HTTP In route, secrets, rate limits, and the operating-system account that runs installed nodes.
Node-RED 5 still needs runtime tests and JavaScript review
Node-RED 5 marks invalid node configuration in the editor, but flow wires do not provide a typed contract for every message property. Open issue #5535 says the runtime can validate basic flow structure and discusses richer node type definitions. Its possible uses, including message validation and generated edit forms, are explicitly future considerations rather than promised features. Important payloads still need runtime tests, validation nodes, or code around system boundaries.
An open Node-RED 5.0.4 report describes search navigation mixing nodes from different workspaces in the browser until reload, while the saved flows.json remained correct. The report does not establish whether 5.0.6 still has the bug. It does show why operators should separate editor display problems from deployed flow state and keep versioned backups before large edits.
Release 5.0.6 arrived with 321 open items
Node-RED 5.0.6 shipped on September 1, 2026, the same date as the last source push. GitHub listed 321 open issues and pull requests on September 2, and discussion continued that day. The release reverted a bcrypt dependency update because of compatibility problems on some Raspberry Pi architectures and operating systems. Shipping that correction quickly is useful evidence for an edge-focused project, where native modules and older hardware regularly expose packaging assumptions.
Node-RED is a good choice for event-driven glue that benefits from being visible while it runs. The 2,843 passing tests and current maintenance support a serious deployment, while the 3 failures, 7 audit findings, and unsecured default require local verification. Put authentication in place before network exposure, persist only the context that matters, pin community nodes, and keep the flow files under version control.
