transformer-explainer review

Transformer Explainer is an interactive website that shows how GPT-2 turns text into a next-token prediction. You can enter a prompt, inspect attention and other internal steps, then change temperature or sampling to see the prediction move.

Verdict

Our build failed after 4 seconds and npm audit found 25 known vulnerabilities, so use the hosted Transformer Explainer for teaching but do not adopt this commit as a ready deployment. The interactive GPT-2 lesson makes attention, sampling, and token prediction easier to inspect than a static diagram. A maintainer who wants to self-host it should first repair the Svelte build, update the dependency tree, and add a real test target.

We ran it

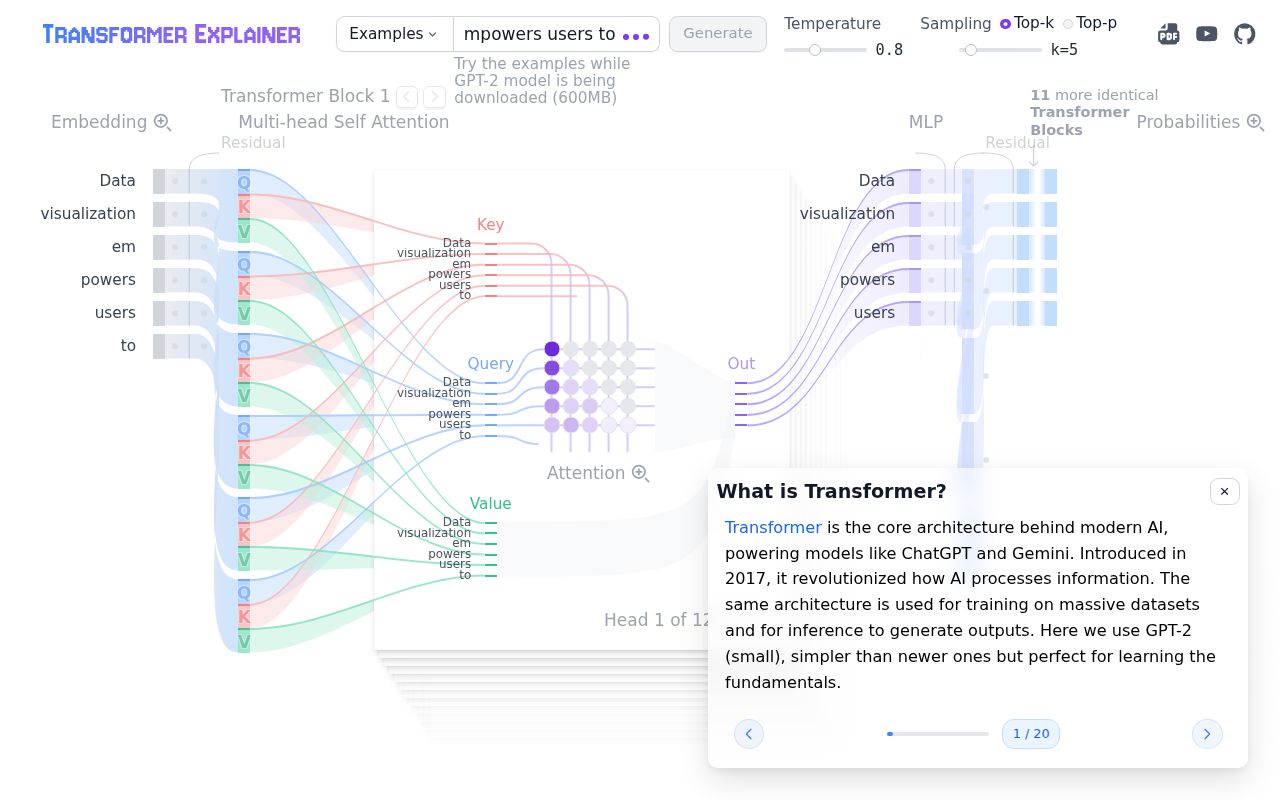

Lab card: what happened when we ran transformer-explainerScreenshot of transformer-explainer (poloclub.github.io/transformer-explainer)
Install✓ · 33s504 packages · 551 MB
Build✗ · 4s
Testsn/ano test script
Known vulns251 critical · 16 high · 6 moderate · 2 low (npm audit)
Repo167 files~168,657 lines of source · 670 MB · 1 CI workflows

Answers from our run

Does transformer-explainer build from source?

Dependencies installed in 33 seconds (504 packages), and the build failed. We cloned commit bfe50af into a clean Debian container with 3 CPUs and no project-specific setup.

Does transformer-explainer have tests you can run?

Not through a standard command: the project exposes no test script or target that our harness could run.

Does transformer-explainer have known vulnerabilities in its dependencies?

npm audit flagged 25 known advisories in the dependency tree, including 1 critical at the time of our run.

Who should not use transformer-explainer?

Teams looking for a dependable self-hosted teaching service: our install completed, but the production build failed after 4 seconds and the audit found 25 known vulnerabilities.

What are the alternatives to transformer-explainer?

BertViz, CNN Explainer, Diffusion Explainer. Our build failed after 4 seconds and npm audit found 25 known vulnerabilities, so use the hosted Transformer Explainer for teaching but do not adopt this commit as a ready deployment.

Setup2/5Install passed, but the production build failed in 4 seconds
Docs3/5Clear quick start, with little build or deployment troubleshooting
Community4/58,721 stars and fresh issue activity, with 22 issues and PRs open
Maturity2/5No test target, a failing build, and 25 audit findings

Who it’s for

Students who need to see token prediction instead of meeting it first as equations.
Instructors who want a live GPT-2 demonstration for attention, residual paths, softmax, and sampling.
Developers who learn best by changing a prompt and watching intermediate values respond.
Researchers studying how to explain language-model mechanics in an interactive lesson.

Who it’s NOT for

Teams looking for a dependable self-hosted teaching service: our install completed, but the production build failed after 4 seconds and the audit found 25 known vulnerabilities.
Courses that need encoder-only or encoder-decoder coverage: the explainer runs GPT-2, so its lesson is centered on a decoder-only model.
Beginners who need every term defined on first contact: open issue 89 points out that MLP appears in step 3 without expansion.
Readers who need every GPT-2 operation drawn explicitly: open issue 71 says the attention output projection shown in the accompanying Python code is missing from the visualization.
Non-English classes needing a finished localized interface: Simplified Chinese remains an open pull request rather than part of the main release.

Setup reality

Our sandbox installed 504 npm packages in 33 seconds and used 551 MB on disk. The production build failed after 4 seconds with a Svelte Vite plugin error while loading src/routes/+layout.svelte. There was no test script or target to run, and npm audit reported 25 known vulnerabilities: 1 critical, 16 high, 6 moderate, and 2 low.

The README asks for Node.js 20 or newer and npm 10 or newer, followed by npm install and npm run dev. No account or API key is required because GPT-2 runs in the browser. The repository includes the model as chunked ONNX files rather than relying on a hosted inference service.

The checkout itself was 670 MB before installation. Custom prompts are a desktop path in the current interface; mobile visitors are directed to the supplied examples. The repository has one CI workflow, no Dockerfile, and no tests directory, so a team adopting it must define its own deploy and regression checks.

The browser runs GPT-2 from 63 local model chunks

Transformer Explainer joins 63 ONNX chunks in the browser, then lets you type a short prompt and follow GPT-2 from token embeddings through attention, the multilayer perceptron, later blocks, logits, and softmax. The browser produces a next-token prediction, so the diagram reacts to the text you supply. That makes the project most useful at the point where a learner understands the words "attention" and "token" but still cannot picture what the model does between input and output.

The interaction goes beyond clicking labels. You can select an attention head, move through Transformer blocks, adjust temperature, and switch between top-k and top-p sampling. A guided textbook panel can call attention to the relevant part of the diagram while it explains the step. The repository also includes 5 prepared examples, which keep the lesson usable while the full browser model is loading. This is the right kind of interactivity for teaching because every control changes the same visible prediction path.

A 4-second build failure separates the demo from the codebase

Our fresh Debian sandbox installed 504 npm packages in 33 seconds and occupied 551 MB. The production build then failed after 4 seconds, before Vite transformed a single module. The reported error came from vite-plugin-svelte while it tried to load src/routes/+layout.svelte: it attempted to read a missing config value. The log does not prove which package or configuration is responsible, so we would not pin the failure on one dependency without another controlled run.

The failure matters because the README presents local setup as four short commands: clone, change directory, install, and start the development server. An install that exits successfully does not establish that a deployable bundle exists. Open issue 74 reports a separate npm dependency-resolution failure, while pull request 85 proposes a Vite 6 and Sass path update. Those records show that other users are also working around the current Svelte and Vite combination, though neither one explains our exact stack trace on its own.

What happened when we ran it

Our run used commit bfe50af in an unprivileged container with 3 CPUs and 8 GB of RAM. The 670 MB checkout contained 167 files and roughly 168,657 lines of source. Installation succeeded in 33 seconds, adding 504 packages and leaving 551 MB of dependencies on disk. The build failed with exit code 1 after 4 seconds at the Svelte layout load. That result makes the hosted site easier to recommend than a fresh self-hosted copy.

There was no tests script or target, so we did not invent a substitute and call it the project test suite. The checkout had no tests directory, one CI workflow, and no Dockerfile. Npm audit found 25 known vulnerabilities: 1 critical, 16 high, 6 moderate, and 2 low. The measurement says nothing about whether the hosted GitHub Pages deployment is exposed to every advisory. It does say this dependency tree needs review before someone puts a fork into a classroom or company deployment.

The 670 MB checkout teaches one decoder-only model

GPT-2 gives Transformer Explainer a narrow, sensible teaching subject. The project connects a token to its embedding, query-key-value work, attention weights, residual path, MLP, and output probabilities without asking a beginner to compare several architectures at once. The browser caches the 63 ONNX chunks and uses prepared data until the model session is ready. No prompt has to travel to a third-party inference API.

That focus also defines what the project cannot teach. GPT-2 is a decoder-only model, so this is not a tour of encoder-only systems such as BERT or encoder-decoder systems used for other sequence tasks. Open issue 71 asks why the attention output projection present in the Python model code is absent from the drawing. Issue 89, filed on September 22, 2026, notes that step 3 uses the abbreviation MLP without expanding it. Both reports concern explanation accuracy, which matters more here than a cosmetic defect would.

Current discussion has moved beyond the lone v0.0.1 release

GitHub showed 8,721 stars and 22 open issues and pull requests when we fetched the repository. The latest tagged release is v0.0.1 from June 2024, but the last repository push was June 6, 2026. An explanation issue arrived on September 22, and open work includes dependency updates, localization, and a draft KV-cache route. That combination looks like a research project receiving useful maintenance and outside contributions, rather than a regularly packaged application release.

The hosted lesson returned successfully when checked, and it remains the easiest way to use the work. Forking the code is a different decision. A self-hoster inherits a 551 MB install, a build that failed in our sandbox, 25 audit findings, and no project test target. Use Transformer Explainer when you want one memorable class session about how GPT-2 predicts a token. Wait for a clean production build, or budget engineering time, before treating the repository as maintained web infrastructure.

Alternatives

ProjectWhat it isPick it when
BertVizA notebook-oriented tool for inspecting attention across several Transformer model families.pick this instead when attention inspection inside Python matters more than a guided browser lesson.
CNN ExplainerAn interactive visual lesson for convolutional neural networks from the same research group.pick this instead when the class is learning image classifiers rather than text generation.
Diffusion ExplainerA browser-based walkthrough of how Stable Diffusion turns a prompt into an image.pick this instead when the teaching goal is text-to-image diffusion rather than next-token prediction.

What people are saying

  1. [github-trending] poloclub/transformer-explainer

Sources

  1. Transformer Explainer README
  2. Transformer Explainer repository
  3. Latest release v0.0.1
  4. Issue 74: npm install failed
  5. Issue 71: output projection missing
  6. Issue 89: unexplained MLP abbreviation
