Version 2.0.3 combines discovery, health, configuration, and traffic control
Consul v2.0.3 addresses a problem that appears once service addresses stop being stable. Workloads register with agents, health checks describe whether they should receive traffic, and clients query the catalog through DNS or HTTP. The same system can hold indexed configuration objects and connect services through encrypted, identity-aware proxies. An API gateway handles traffic entering the mesh.
The breadth is useful in mixed estates. A 43.4 MB checkout contains the control plane for Linux, macOS, FreeBSD, Solaris, and Windows, with an optional browser interface. Consul can register external services as well as software running beside an agent. Multi-datacenter support makes it more suitable than a Kubernetes-only registry when applications span clusters, virtual machines, and older hosts. That reach also creates more failure modes than a single-cluster tool.
What happened when we ran it

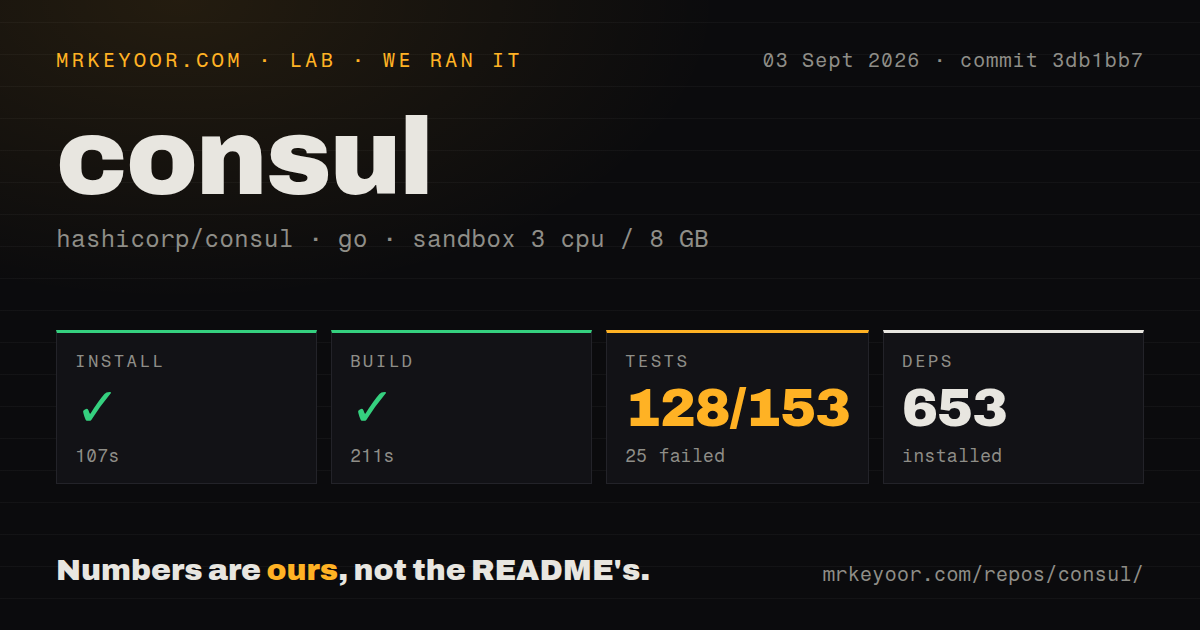

Our sandbox installed 653 Go packages in 107 seconds and built commit 3db1bb7 successfully in 211 seconds. The checkout contained 11,193 files, roughly 821,565 lines of source, and 42 CI workflow files. A Dockerfile and tests directory were present. These measurements came from an unprivileged Go 1.24 Bookworm container with 3 CPUs, 8 GB of RAM, and no secrets.
The full test command did not finish within 900 seconds. Go reported 128 passed and 25 failed package results out of 153 before the timeout. The supplied tail contains successful results for command packages such as join, keygen, keyring, several kv commands, leave, and lock. It does not show the error behind the failed packages, so blaming a missing service or flaky test would go beyond our run.
The practical finding is that a clean install and build can pass while the complete suite remains a long, failing job on a 3-CPU machine. HashiCorp's contributor guide recommends targeted package tests and the short flag during development, which fits what we measured. Our measurement method used the repository's Go path. It did not form a Consul cluster, register services, or test failover and request latency.
Production starts with 1 to 5 servers and security you enable
HashiCorp's v2.0 VM guide describes a server cluster of 1 to 5 Consul servers in one cloud region. The nodes must agree on the expected bootstrap count, join one another, elect a Raft leader, and retain persistent state. One server is suitable for development, while a production design has to survive node failure. DNS, fixed addresses, or cloud auto-join can help later agents find the cluster.
Security is an explicit setup phase. The v2.0 guide says Consul is not secure by default, and its ACL guide says ACLs start disabled. Operators need gossip encryption for membership traffic, mTLS for Raft, RPC, API, CLI, and UI traffic, plus ACL tokens for resource access. The recommended ACL default is deny. Bootstrap credentials, agent tokens, the private CA, and certificate rotation all become operational assets.
A 512 KB key limit keeps Consul out of the database role
Consul stores its catalog, key-value entries, access rules, and sessions in memory, then persists changes through Raft snapshots and logs. The official VM requirements set a 512 KB limit per key value and explicitly warn against using Consul as a general-purpose database. This store fits feature flags, service configuration, locks, and coordination data. Application records belong in a database built for their query and retention needs.
Server sizing depends on the workload rather than the 211-second build. Writes wait for disk synchronization on a quorum, while reads use CPU and memory. HashiCorp recommends at least 2 cores and enough RAM for 2 to 4 times the working set. Operators also choose consistency modes, monitor leader contact, protect file-descriptor limits, and test snapshots. A green health page cannot replace a restore exercise.
BUSL 1.1 permits internal production use but restricts competitors
Consul 1.17.0 and later use the Business Source License 1.1. The additional grant allows production use unless the product is a paid competitive offering that hosts or embeds Consul. Internal use within an organization is permitted. Each version changes to MPL 2.0 after 4 years. That is source-available licensing with delayed open-source terms, not the Apache-style permission many infrastructure buyers expect.
The licensing question is concrete for vendors. A company running Consul internally can stay within the stated additional grant, while a company packaging it into a paid overlapping service must assess the restriction or obtain another license. Legal review is cheaper than designing around the wrong assumption. Etcd, Istio, and Linkerd use Apache 2.0, though none replaces the full catalog, configuration, and cross-platform mesh combination by itself.
September 2026 work is active, with 1,424 issues and PRs open
GitHub recorded 30,055 stars, 1,424 combined issues and pull requests, and a last push on September 4, 2026. The queue is large, but same-day pull request updates include dependency and security work. Release v2.0.3 shipped on August 7, 2026. Its notes contain dependency advisory fixes and changes for denial of service, ACL-token logging, request size limits, and path normalization.
Those dates show active maintenance, while the release content shows why upgrades need care. Consul sits in discovery and traffic paths, and v2.0.3 changes security behavior as well as dependencies. Our 900-second timeout also makes local verification expensive. Teams adopting it should pin versions, read security notes, stage upgrades against representative registrations and policies, and keep a tested snapshot procedure. Consul pays for that work only when its broad control plane replaces several narrower systems.
